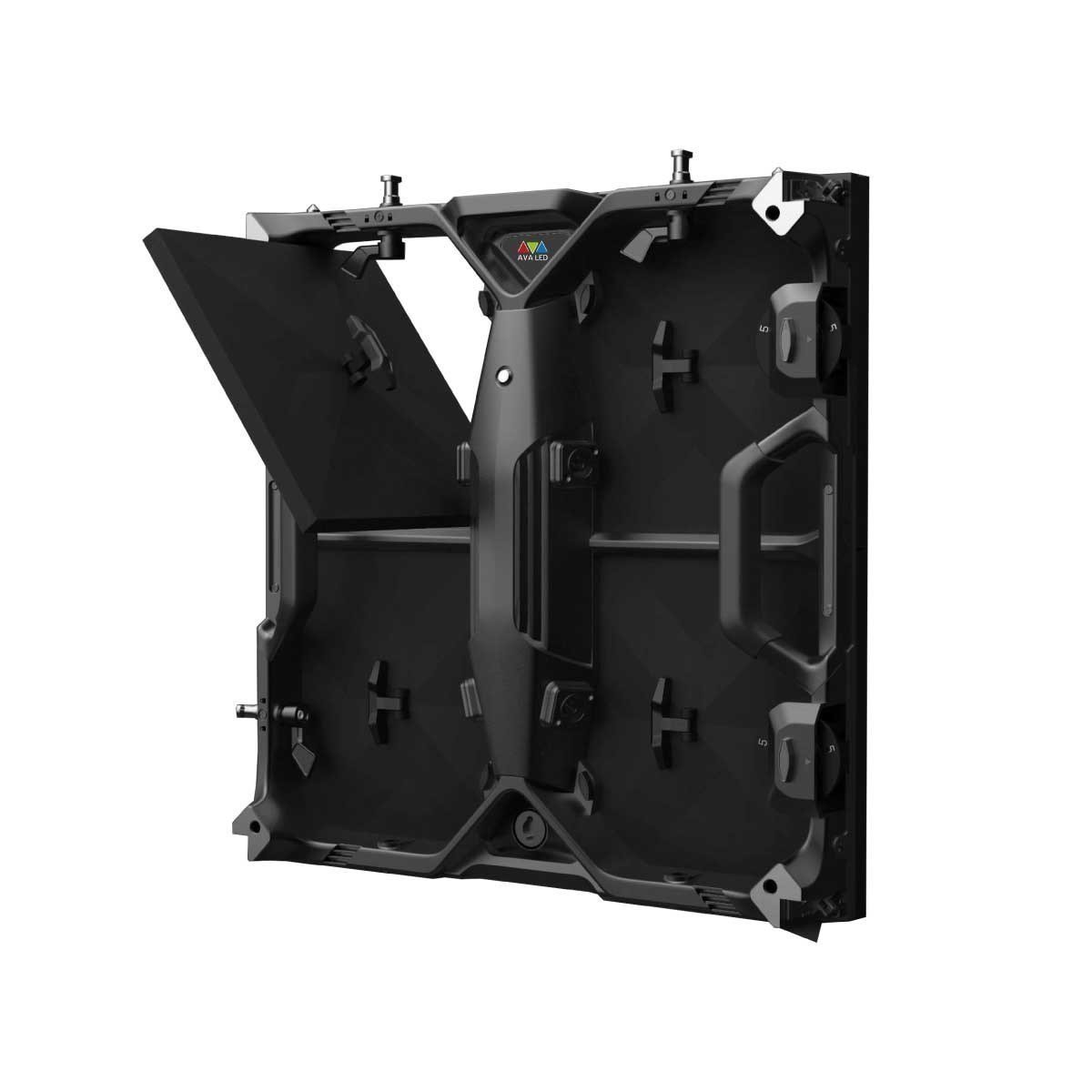

Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen

Elite Series CR-IR-2 PRO, P2,97 500x500 Indoor led Screen (CRIR2)

You have to login to see the prices.

Total Stock : 304
Stock Amount : 304
Estimated Delivery Time : 58 Day
NATIONSTAR2 MEANWELL2 ICN2153 Novastar Seetronic 3840Hz SMD1515 1000nits



General Features:

  • Pixel Pitch : P2,97 Indoor
  • High Refresh Rate : >3840Hz
  • High Brightness : >1000 Nits
  • Cabinet Size : 500mm x 500mm x 80mm

Datasheet              User Manuel        Drawing              Pictures            Drawing      Youtube 1                    Youtube 3        Youtube 4

MODEL NAME Version
CR-IR-2
Features
:
Series
PRO
Panel installation type
Rental
Operating Environment
Indoor
Pixel Pitch
P2,976
Brightness
>1000 Nits
Refresh Rate
>3840Hz
Front / Back Services
Front Services
Weight / m2
<28
Material Brands
:
Lamp
Class A
Entegred
Chipone or Smilar
Powersupply
Meanwell or Smilier
Controller
Novastar
Connectors : Seetronic
Seetronic
Module Specifications
:
Pixel Configuration
SMD1515
LED Chip
Cooper
Led
Space Black
Module Size (mm)
250mm x 250mm
Module Resolution
84px x 84px
Processing
>14-16 Bit
PCB Quality
Best Quality
Module - Mask Quality
Normal Mask
Picture / Video Quality
High Quality
Grey Scale
>65536
Cabinet Specifications
:
Module Per Cabinet
4 Module
Cabinet Size (mm)
500mm x 1000mm x 85mm
Cabinet Material
Die-Casting Magnesium
Weight Per Panel Net kg.
<7kg.
Cabinet Resolution
168px x 168px
Pixel Density / Cabinet
36864
IP Rating
IP40
Others Specifications
:
Driving IC Type
PWM
Refrate Quality 2
High Refresh
No Waterless Ripple of Camera
>%75
Driving Method '' Scan ''
1/28 Scan
Resolution/SQM
336 x 336
Pixel Density / m2
112896
White Color Calibration (Adj.)
3.500K~8.500K
Horizontal Viewing Angle
140 (±30)
Vertical Viewing Angle
140 (±30)
Low Latency
NO
HDR
NO
Mapping
NO
Rotation per 90 Degree
YES
Free Rotation (with R5)
Optional
Clear View
Optional
Refresh Quality
High Quality
High Refresh (PLL inside)
NO
High Refresh Power Saving
NO
High Refresh Dynamic Power Saving
NO
Expected LED Lifetime %50
>100.000 Hors
Operating Temperature Range
-15 – +45  (±10)
Operating Humidity Range
-40℃~+60℃,10%-90%RH (+-10)
Power on Time w/sqm
800W
Power Consumption (w/sqm)
520W
Average Power Consumption (w/sqm)
182W
Voltage Range
47 ~ 63Hz / 110 ~ 240 VAC
Version
REV22
Packing include
Plate-Power-Cat5 Standart Cable
Usage Area
Rental Screen Studio, Confrence, Meeting Room & TV Studio, Advertisement, Auditorium, Conference & Concert Hall Small Pixel Advertisement, Shopping Center & Totem
Certificate
CE/EMC/LVD - ATR - EUR1 - ISO9001:2015 - ISO14001:2015
Accessories
