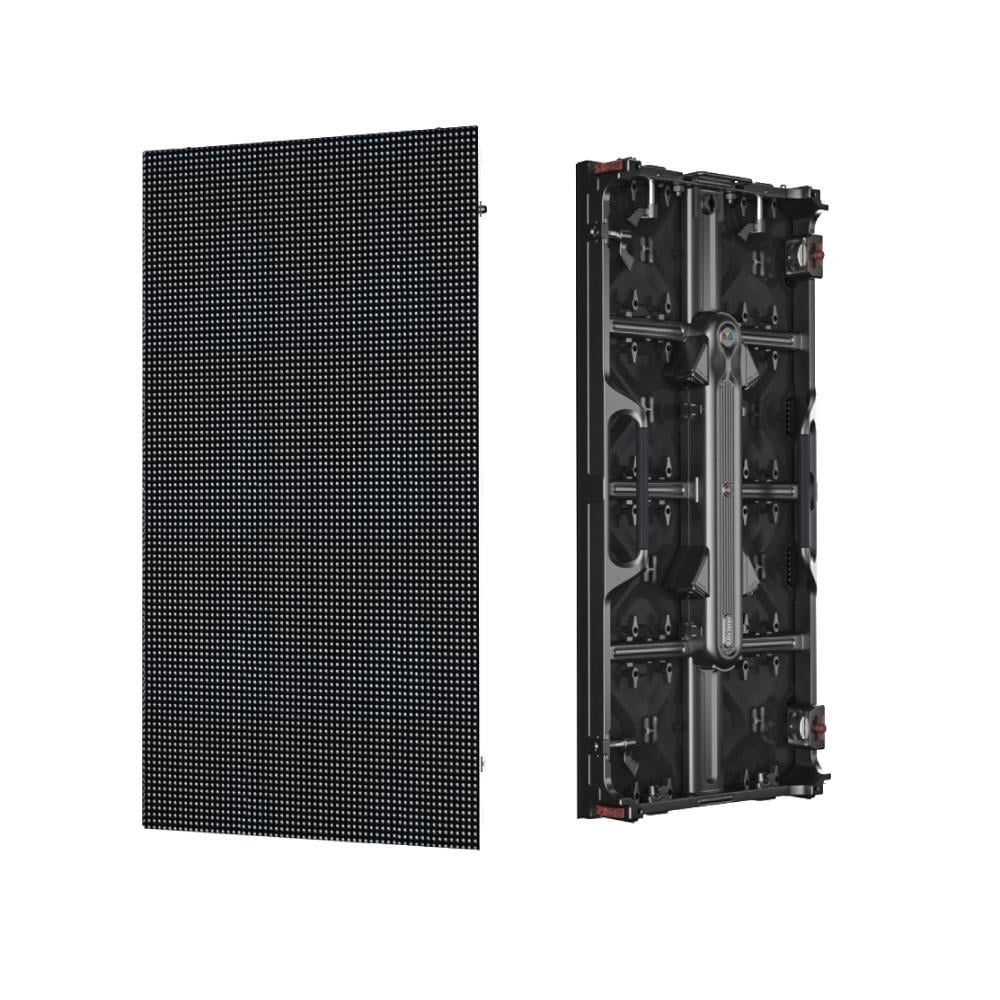

Elite Series CR-OR-3 Pro 1000L, P3,91 500x500 Outdoor led Screen
Elite Series CR-OR-3 Pro 1000L, P3,91 500x500 Outdoor led Screen
Elite Series CR-OR-3 Pro 1000L, P3,91 500x500 Outdoor led Screen
Elite Series CR-OR-3 Pro 1000L, P3,91 500x500 Outdoor led Screen
Elite Series CR-OR-3 Pro 1000L, P3,91 500x500 Outdoor led Screen
Elite Series CR-OR-3 Pro 1000L, P3,91 500x500 Outdoor led Screen

Elite Series CR-OR-3 Pro 1000L, P3,91 500x1000 Outdoor led Screen (CROR3)

You have to login to see the prices.

Total Stock : 2000
Stock Amount : 2000
NATIONSTAR2 Novastar Seetronic 3840Hz SMD1921 5200nits



General Features:

  • Pixel Pitch : P3,91 Outdoor Flat Cabinet
  • High Refresh Rate : >3840Hz
  • High Brightness : >5200 Nits
  • Cabinet Size : 500mm x 1000mm x 80mm

Datasheet              User Manuel        Drawing              Pictures            Drawing      Youtube 1               Youtube 3        Youtube 4

MODEL NAME Version
CR-OR-3
Features
:
Series
PRO
Panel installation type
Rental
Operating Environment
Outdoor
Pixel Pitch
P3,91
Brightness
>4800 Nits
Refresh Rate
>3840Hz
Front / Back Services
Front Services
Weight / m2
<28
Material Brands
:
Lamp
Class A
Entegred
Chipone or Smilar
Powersupply
2 pcs
Controller
Novastar
Connectors : Seetronic
Seetronic
Module Specifications
:
Pixel Configuration
SMD1921
LED Chip
Cooper
Led
Black Shell
Module Size (mm)
250mm x 250mm
Module Resolution
64px x 64px
Processing
>14-18 Bit
PCB Quality
Best Quality
Module - Mask Quality
Normal Mask
Picture / Video Quality
Best Quality
Grey Scale
>65536
Cabinet Specifications
:
Module Per Cabinet
8 Module
Cabinet Size (mm)
500mm x 1000mm x 85mm
Cabinet Material
Die-Casting Magnesium
Weight Per Panel Net kg.
<13kg.
Cabinet Resolution
128px x 256px
Pixel Density / Cabinet
16384
IP Rating
IP65
Others Specifications
:
Driving IC Type
PWM
Refrate Quality 2
Highend Refresh Rate
No Waterless Ripple of Camera
>%75
Driving Method '' Scan ''
1/16 Scan
Resolution/SQM
256 x 256
Pixel Density / m2
65536
White Color Calibration (Adj.)
3.500K~8.500K
Horizontal Viewing Angle
140 (±30)
Vertical Viewing Angle
140 (±30)
Low Latency
NO
HDR
NO
Mapping
NO
Rotation per 90 Degree
YES
Free Rotation (with R5)
Optional
Clear View
Optional
Refresh Quality
High Quality
High Refresh (PLL inside)
NO
High Refresh Power Saving
YES
High Refresh Dynamic Power Saving
NO
Expected LED Lifetime %50
>100.000 Hors
Operating Temperature Range
-15 – +45  (±10)
Operating Humidity Range
-40℃~+60℃,10%-90%RH (+-10)
Power on Time w/sqm
800W
Power Consumption (w/sqm)
750W
Average Power Consumption (w/sqm)
263W
Voltage Range
47 ~ 63Hz / 110 ~ 240 VAC
Version
REV22
Packing include
Plate-Power-Cat5 Standart Cable
Usage Area
Rental Screen Studio, Advertisement, Auditorium, Conference & Concert Hall Auditorium, Concert Area , Advertisement, Shopping Center, Scoreboard & Totem
Certificate
CE/EMC/LVD - ATR - EUR1 - ISO9001:2015 - ISO14001:2015
