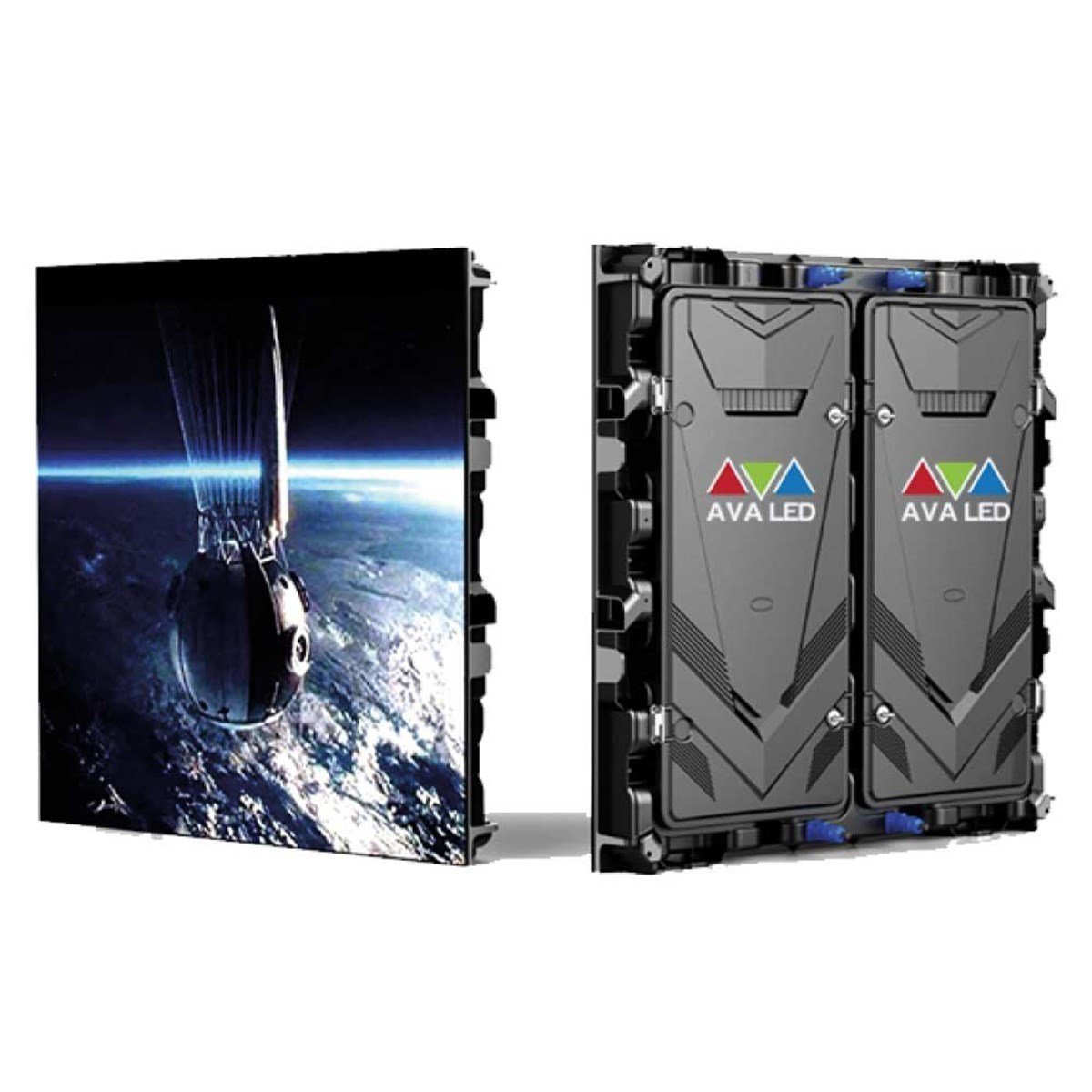

TN-OF-4 PRO, P4 Outdoor Led Screen
TN-OF-4 PRO, P4 Outdoor Led Screen
TN-OF-4 PRO, P4 Outdoor Led Screen
TN-OF-4 PRO, P4 Outdoor Led Screen
TN-OF-4 PRO, P4 Outdoor Led Screen
TN-OF-4 PRO, P4 Outdoor Led Screen
TN-OF-4 PRO, P4 Outdoor Led Screen
TN-OF-4 PRO, P4 Outdoor Led Screen
TN-OF-4 PRO, P4 Outdoor Led Screen
TN-OF-4 PRO, P4 Outdoor Led Screen
TN-OF-4 PRO, P4 Outdoor Led Screen

TN-OF 8 PRO, P8 Outdoor Led Screen (TNOF8PRO)

You have to login to see the prices.

Total Stock : 19
Stock Amount : 19
NATIONSTAR2 MEANWELL2 ICN2153 Novastar Seetronic 1920Hz 3840Hz SMD 3535 6500nits



General Features:

  • Pixel Pitch : P8
  • High Refresh Rate : >1920Hz or 3840Hz '' Optional ''
  • High Brightness : >6500 Nits
  • Cabinet Size : 960mm x 960mm

Datasheet            User Manuel            Drawing             Drawing                 Pictures             Youtube            Youtube            Youtube

MODEL NAME Version
TN-OF-8
Features
:
Series
PRO
Panel installation type
Fix Instalation
Operating Environment
Outdoor
Pixel Pitch
P8
Brightness
>6500 Nits
Refresh Rate
>1920Hz >3840Hz
Front / Back Services
Back Services
Weight / m2
<28
Material Brands
:
Lamp
Class A
Entegred
Chipone or Smilar
Powersupply
Meanwell or Smilier
Controller
Novastar
Connectors : Seetronic
Seetronic
Module Specifications
:
Pixel Configuration
SMD3535
LED Chip
Cooper
Led
Black Shell
Module Size (mm)
320mm x 160mm
Module Resolution
40px x 20px
Processing
>14-16 Bit
PCB Quality
Best Quality
Module - Mask Quality
Normal Mask
Picture / Video Quality
High Quality
Grey Scale
>65536
Cabinet Specifications
:
Module Per Cabinet
18 Module
Cabinet Size (mm)
960mm x 960mm x 105mm
Cabinet Material
Die-Casting Magnesium
Weight Per Panel Net kg.
<25kg.
Cabinet Resolution
120px x 120px
Pixel Density / Cabinet
14400
IP Rating
Back IP54 / Front IP67
Others Specifications
:
Driving IC Type
PWM
Refrate Quality 2
High Refresh
No Waterless Ripple of Camera
>%75
Driving Method '' Scan ''
1/5 Scan
Resolution/SQM
100 x 100
Pixel Density / m2
15625
White Color Calibration (Adj.)
3.500K~8.500K
Horizontal Viewing Angle
140 (±30)
Vertical Viewing Angle
140 (±30)
Low Latency
NO
HDR
NO
Mapping
NO
Rotation per 90 Degree
Optional
Free Rotation (with R5)
Optional
Clear View
Optional
Refresh Quality
High Quality
High Refresh (PLL inside)
NO
High Refresh Power Saving
YES
High Refresh Dynamic Power Saving
NO
Expected LED Lifetime %50
>100.000 Hors
Operating Temperature Range
-15 – +45  (±10)
Operating Humidity Range
-40℃~+60℃,10%-90%RH (+-10)
Power on Time w/sqm
900W
Power Consumption (w/sqm)
780W
Average Power Consumption (w/sqm)
312W
Voltage Range
47 ~ 63Hz / 110 ~ 240 VAC
Version
REV22
Packing include
Plate-Power-Cat5 Standart Cable
Usage Area
Auditorium, Concert Area , Advertisement, Shopping Center, Scoreboard & Totem
Certificate
CE/EMC/LVD - ATR - EUR1 - ISO9001:2015 - ISO14001:2015
Accessories
