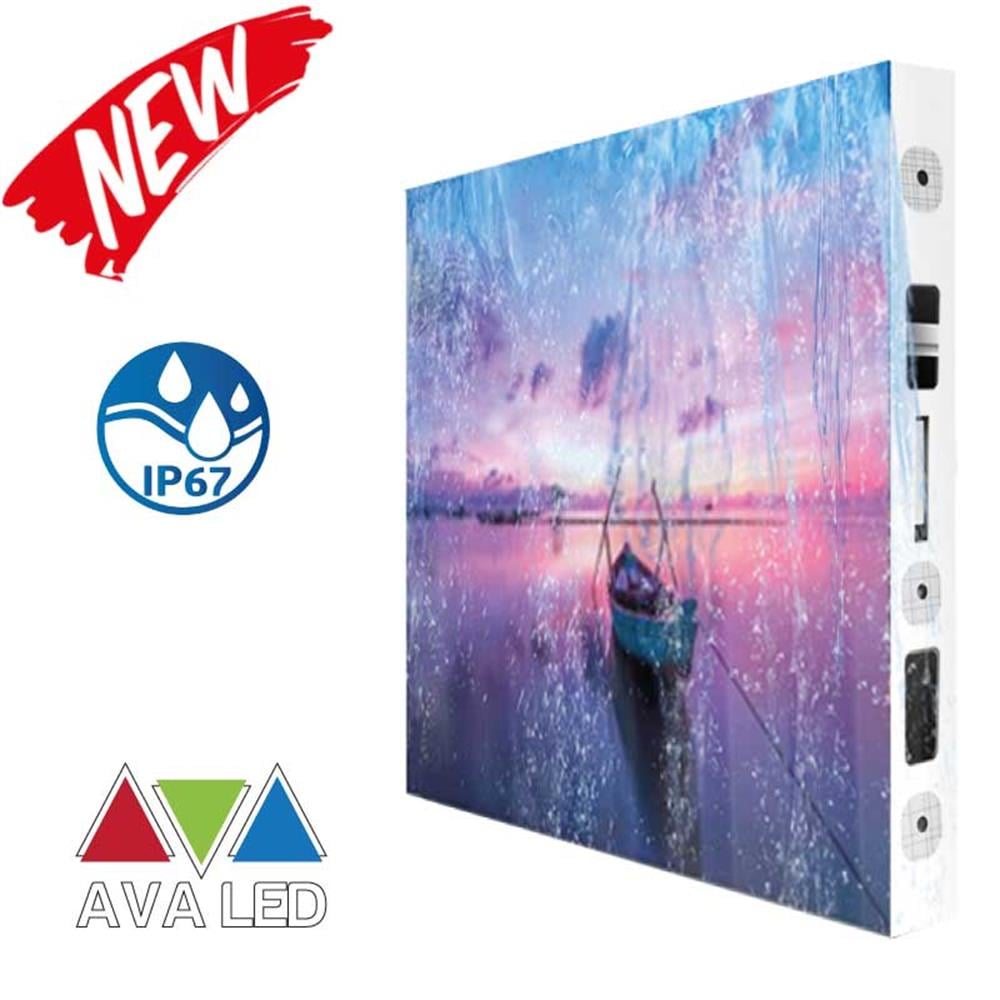

TN-PRO-OF-8-F, P8 Outdoor Led Screen 960X960 (TNPROOF8F)

You have to login to see the prices.

Total Stock : 60
Stock Amount : 60
NATIONSTAR2 Novastar Seetronic 3840Hz SMD2727 6500nits



General Features:



  • Pixel Pitch : P8
  • High Refresh Rate : >3840Hz
  • High Brightness : >6500 Nits
  • Cabinet Size : 960mm x 960mm x 115mm
  • Operating Environment : Outdoor
  • Panel installation type : Front Services
  • Usage Area : Fix Instalation

Datasheet           User Manuel          Drawing           Drawing              Pictures                 Youtube            Youtube

MODEL NAME Version
TN-PRO-OF-8
Features
:
Series
F
Panel installation type
Fix Instalation
Operating Environment
Outdoor
Pixel Pitch
P8
Brightness
>8000 Nits
Refresh Rate
>3840Hz
Front / Back Services
Front Services
Weight / m2
<28
Material Brands
:
Lamp
Class A
Entegred
Chipone or Smilar
Powersupply
Meanwell or Smilier
Controller
Novastar
Connectors : Seetronic
Seetronic
Module Specifications
:
Pixel Configuration
SMD2727
LED Chip
Cooper
Led
Black Shell
Module Size (mm)
320mm x 320mm
Module Resolution
40px x 40px
Processing
>14-16 Bit
PCB Quality
Best Quality
Module - Mask Quality
Normal Mask
Picture / Video Quality
High Quality
Grey Scale
>65536
Cabinet Specifications
:
Module Per Cabinet
9 Module
Cabinet Size (mm)
960mm x 960mm x 115mm
Cabinet Material
Aluminum
Weight Per Panel Net kg.
<25kg.
Cabinet Resolution
120px x 120px
Pixel Density / Cabinet
14400
IP Rating
IP67
Others Specifications
:
Driving IC Type
PWM
Refrate Quality 2
High Refresh
No Waterless Ripple of Camera
>%75
Driving Method '' Scan ''
1/5 Scan
Resolution/SQM
125 x 125
Pixel Density / m2
22500
White Color Calibration (Adj.)
3.500K~8.500K
Horizontal Viewing Angle
140 (±30)
Vertical Viewing Angle
140 (±30)
Low Latency
NO
HDR
NO
Mapping
NO
Rotation per 90 Degree
Optional
Free Rotation (with R5)
Optional
Clear View
Optional
Refresh Quality
High Quality
High Refresh (PLL inside)
NO
High Refresh Power Saving
YES
High Refresh Dynamic Power Saving
NO
Expected LED Lifetime %50
>100.000 Hors
Operating Temperature Range
-15 – +45  (±10)
Operating Humidity Range
-40℃~+60℃,10%-90%RH (+-10)
Power on Time w/sqm
900W
Power Consumption (w/sqm)
750W
Average Power Consumption (w/sqm)
300W
Voltage Range
47 ~ 63Hz / 110 ~ 240 VAC
Version
REV23
Packing include
Plate-Power-Cat5 Standart Cable
Usage Area
Auditorium, Concert Area , Advertisement, Shopping Center, Scoreboard & Totem
Certificate
CE/EMC/LVD - ATR - EUR1 - ISO9001:2015 - ISO14001:2015
